PSH0731B - 700w Indoor Lamp
This luminaire is ideal for use in shopping malls, large homes, factories, warehouses, aircraft hangers, indoor sporting arenas and any large indoors space with a ceiling height greater than 15 feet.
Specifications
Power Consumption: 730wBrightness: 59000 lumens (Photopic), 86900 lumens (Mesopic) @7500°K
Available Color Temperatures: 4500°K, 5500°K, 6500°K, 7500°K
Color Rendering Index: <85Ra
Available Beam Angles: 50°, 90°, 120°
Typical Life: >30000 hours typical
Power Input: 198~242v AC, 50~60Hz
Weight: 19.7 kg, 43.3 lbs, includes mounting bracket
IES Profiles
PSH0731B - 50° Beam High BayPSH0731B - 90° Beam High Bay
PSH0731B - 120° Beam High Bay
Detailed Views
)
)
)
)
)

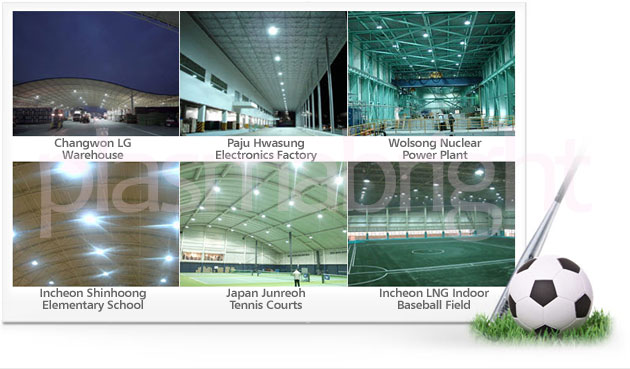

Actual Installations
)
)
)
)
)
)
)
)
)
)
)
)
Cone Lux Levels
Photometrics

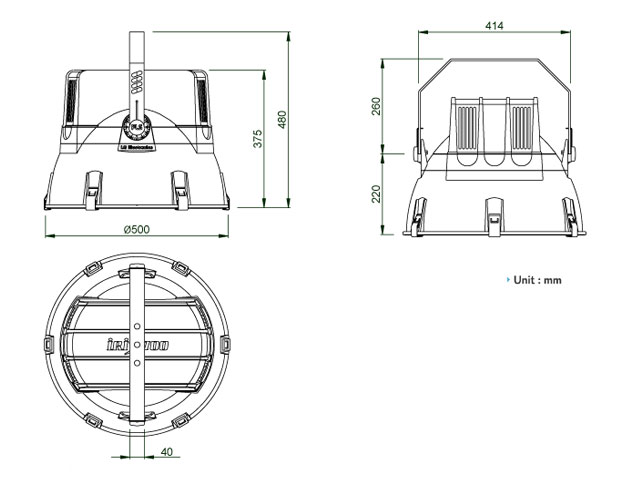

Dimensions
